Day 10 -- What You Built and Where to Go¶

Ten days ago you scaffolded a single tool agent. Today you have a 13-agent trip planner running on Kubernetes with LLM-driven planning, a committee of specialists, chat history, distributed tracing, and an HTTP API. Let's take stock of what you built, cover a few production essentials, and look at where to go from here.

Part 1: What you built¶

By the numbers¶

The final architecture¶

graph TB
    subgraph k8s["Kubernetes -- trip-planner namespace"]
        direction TB
        subgraph core["mcp-mesh-core (Helm)"]
            PG[(postgres)]
            REG[registry :8000]
            RD[(redis)]
            TM[tempo]
            GR[grafana :3000]
        end
        subgraph agents["13 Agents (Helm)"]
            GW[gateway :8080]
            CH[chat-history]
            PL[planner]
            CP[claude-provider]
            OP[openai-provider]
            FA[flight-agent]
            HA[hotel-agent]
            WA[weather-agent]
            PA[poi-agent]
            UP[user-prefs]
            BA[budget-analyst]
            AA[adventure-advisor]
            LP[logistics-planner]
        end
    end

    U[User] -->|"port-forward\nor ingress"| GW

    style U fill:#555,color:#fff
    style k8s fill:#1a1a2e,color:#fff,stroke:#4a9eff
    style core fill:#2d2d44,color:#fff,stroke:#666
    style agents fill:#2d2d44,color:#fff,stroke:#666
    style GW fill:#e67e22,color:#fff
    style REG fill:#1abc9c,color:#fff
    style PG fill:#336791,color:#fff
    style RD fill:#d63031,color:#fff
    style TM fill:#f39c12,color:#fff
    style GR fill:#f39c12,color:#fff
    style PL fill:#9b59b6,color:#fff
    style CP fill:#9b59b6,color:#fff
    style OP fill:#9b59b6,color:#fff
    style BA fill:#f39c12,color:#fff
    style AA fill:#f39c12,color:#fff
    style LP fill:#f39c12,color:#fff
    style FA fill:#4a9eff,color:#fff
    style PA fill:#4a9eff,color:#fff
    style UP fill:#1a8a4a,color:#fff
    style WA fill:#1a8a4a,color:#fff
    style HA fill:#1a8a4a,color:#fff
    style CH fill:#1abc9c,color:#fff

One namespace. Two Helm charts. Thirteen agents, a registry, a database, and a full observability stack -- the same Python functions you wrote on Day 1, running in Kubernetes pods.

The journey, day by day¶

Every day added capability without rewriting what came before. The flight_search function from Day 1 is the same function running on Kubernetes on Day 9.

The code you didn't write¶

Over ten days you focused on business logic -- the trip planning domain. Here is what you never had to build:

• No REST clients or HTTP handlers for inter-agent communication
• No service discovery code
• No environment-specific configuration files
• No sidecars or proxy containers
• No LLM vendor SDK imports in the planner
• No serialization/deserialization code for tool calls

The flight_search function from Day 1 runs on Kubernetes unchanged. Same file, same decorators, same types. The mesh handled registration, discovery, routing, failover, and observability -- your code handled flights, hotels, weather, and trip plans.

Part 2: Production readiness¶

TripPlanner is functional, but a production deployment needs a few more layers. Each item below is a brief pointer with a link to the full documentation -- not a deep-dive.

Security¶

MCP Mesh provides three layers of security: registration trust (who can join the mesh), agent-to-agent mTLS (encrypted inter-agent calls), and authorization (who can do what).

• Registration trust -- the registry validates agent identity via TLS certificates before accepting registration. Supports file-based certs, HashiCorp Vault PKI, and SPIRE workload identity.
• Agent-to-agent mTLS -- every inter-agent call is mutually authenticated. The same certificate used for registration handles peer auth -- no additional configuration.
• Authorization -- MCP Mesh propagates HTTP headers end-to-end through the mesh. Use your platform's auth framework (FastAPI middleware, Spring Security, Express middleware) to enforce access control.
• Entity management -- meshctl entity register, meshctl entity list, and meshctl entity revoke control which organizational CAs are trusted.

Full details: Security documentation

Observability¶

The observability stack you deployed on Day 9 (Tempo + Grafana) is ready for production monitoring:

• Distributed tracing -- every tool call, LLM invocation, and inter-agent hop is traced. Use meshctl trace locally or Grafana's Tempo datasource in Kubernetes.
• Dashboards -- Grafana ships with pre-configured views for latency, error rates, and queue depth.
• Alerting -- connect Grafana alerting to Slack, PagerDuty, or email for latency spikes or error rate thresholds.

Full details: Observability documentation

Resource limits¶

Set CPU and memory limits in your Helm values files. You already have helm-values.yaml per agent from Day 9 -- add resource blocks:

agent:
  resources:
    requests:
      cpu: 100m
      memory: 128Mi
    limits:
      cpu: 500m
      memory: 512Mi

Health probes¶

Mesh agents expose health endpoints automatically (/health). The Helm chart wires liveness and readiness probes to this endpoint -- no configuration needed. If an agent becomes unhealthy, Kubernetes restarts it and the registry removes it from the topology within one heartbeat cycle.

Secrets management¶

Day 9 used kubectl create secret for LLM API keys. For production, move to a secrets operator:

• external-secrets-operator -- syncs secrets from Vault, AWS Secrets Manager, or GCP Secret Manager into Kubernetes secrets.
• sealed-secrets -- encrypt secrets in Git, decrypt at deploy time.

Horizontal scaling¶

Tool agents are stateless -- run multiple replicas for throughput. The mesh routes calls to any healthy instance automatically:

agent:
  replicaCount: 3

LLM providers and the planner can also scale horizontally. The chat history agent is stateless too (state lives in Redis). The gateway scales behind a Kubernetes Service or Ingress.

Part 3: Challenges¶

The tutorial is complete, but TripPlanner is a starting point. Here are ideas to explore on your own -- each one exercises a different part of the mesh.

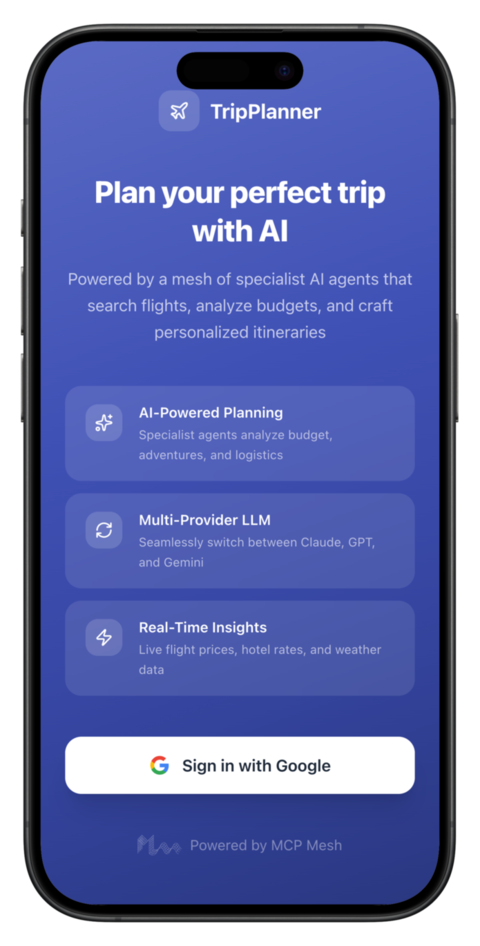

Add OAuth authentication to the gateway¶

Protect the /plan endpoint with JWT tokens. Use FastAPI's HTTPBearer dependency to validate tokens, and configure MCP_MESH_PROPAGATE_HEADERS to forward the Authorization header through the mesh so downstream agents can see the caller's identity. See the authorization documentation for the header propagation pattern.

Integrate RAG with a knowledge-base agent¶

Scaffold a new agent that retrieves destination guides from a vector store (Pinecone, Weaviate, pgvector). Inject the retrieved context into the planner's prompt template as an additional variable. The planner already supports Jinja templates -- add a {{ destination_context }} block and wire the knowledge agent as a tier-1 dependency.

Add a Gemini provider¶

Scaffold a third LLM provider with meshctl scaffold. Register it with capability="llm" and tags=["gemini"]. Deploy all three providers and benchmark them on the same trip query. The planner's +claude tag routing gives Claude priority, but if you stop Claude and Gemini, traffic fails over to OpenAI -- test it.

Build a price monitor¶

Create a scheduled agent that checks flight prices daily (expand the flight_search stub with real API calls or a richer simulation). When prices drop below a user-defined threshold, write an alert to a new price_alerts capability. Wire a notification agent that reads alerts and sends messages via email or Slack.

Swap a Python agent for TypeScript¶

Rewrite weather-agent in TypeScript using the TypeScript SDK. Start it alongside the Python agents. The planner doesn't know or care what language the weather agent is written in -- it discovers capabilities, not implementations. Verify everything works with meshctl call get_weather.

Add structured logging¶

Configure JSON logging in your agents (Python's structlog or the standard logging module with a JSON formatter). Include the trace_id from mesh headers so log lines correlate with distributed traces. Ship logs to Grafana Loki and cross-reference with Tempo traces for full request-level observability.

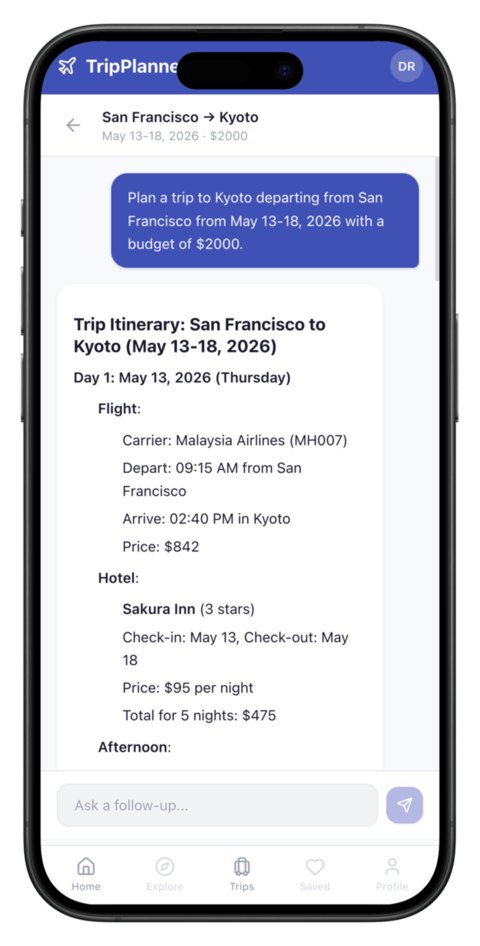

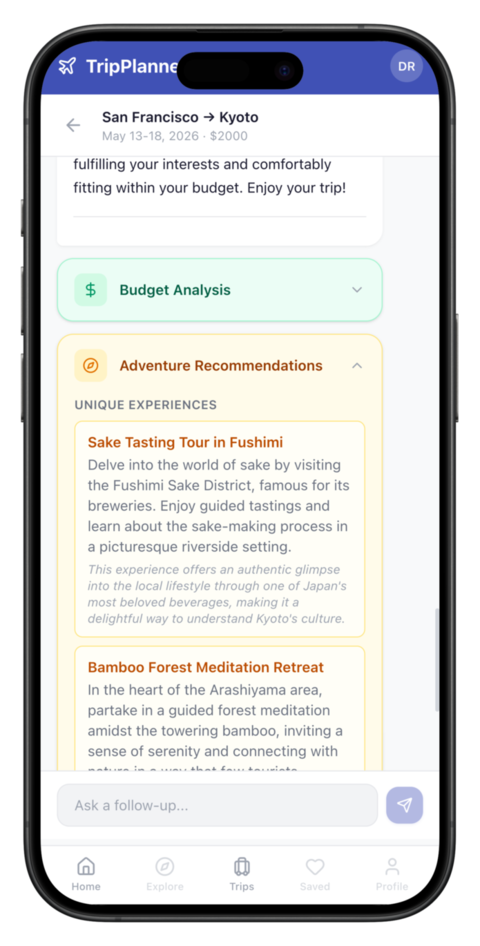

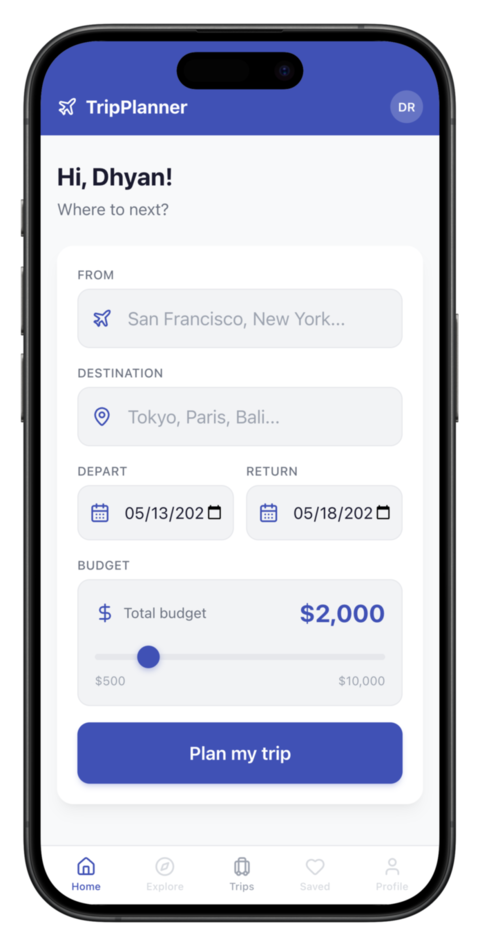

Build a mobile client¶

Create a lightweight web UI that talks to the gateway's /plan endpoint. A starter project is waiting in examples/tutorial/trip-planner/day-10/bonus-ui/ -- check the README for status. The gateway already exposes a REST API, so the client is a standard fetch/axios integration.

Thank you¶

That's the TripPlanner tutorial. You started with a single Python function and ended with a 13-agent system running on Kubernetes -- with LLM planning, committee refinement, chat history, distributed tracing, and an HTTP API. Every agent is a plain Python file. Every deployment target uses the same code. The mesh handled the infrastructure so you could focus on the domain.

If you have questions, ideas, or feedback, find us on Discord or GitHub. We'd love to see what you build.
